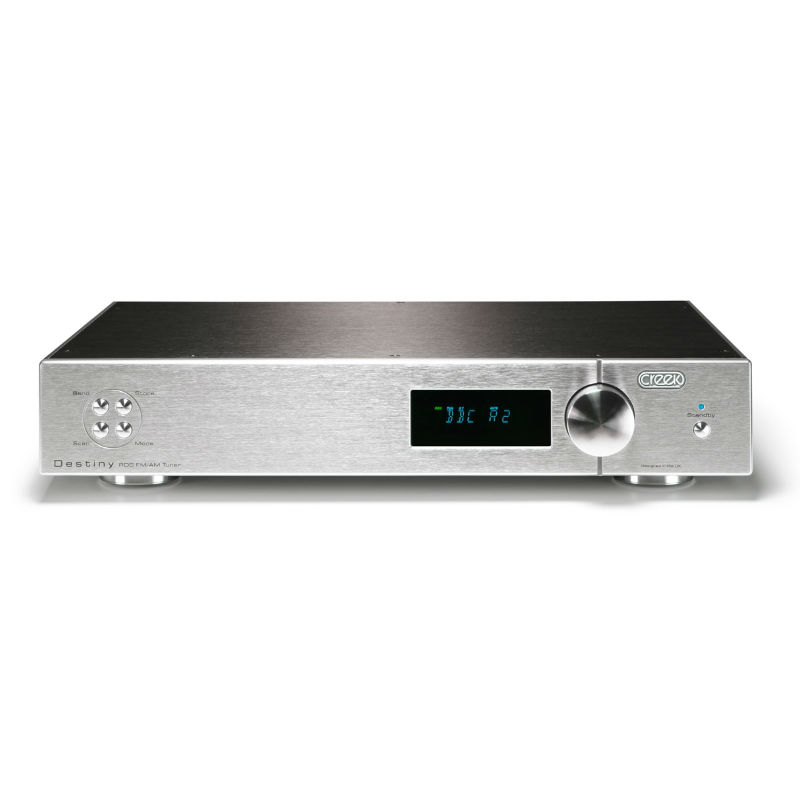

| טיונר CREEK DESTINY 2 TUNER |
|
4660 ₪
|
|
|
|
|
|
| פרטי המוצר |
פרטים נוספים |
|
TECHNICAL SPECIFICATION
| WAVE BANDS |
Worldwide FM 87 – 108 MHz
Japan FM 76 – 90 MHz
Europe MW/AM 522 – 1611 kHz
USA AM 530 – 1710 kHz |
| FREQUENCY INCREMENTS |
50 kHz FM, 9 or 10 kHz AM |
| USABLE FM SENSITIVITY |
9dbu @ 30bd S/N 90MHz |
| SELECTIVITY (IHF) |
30dB |
| NUMBER OF PRE-SETS |
80 |
| FREQUENCY RESPONSEFM ONLY |
20 Hz to 16 kHz -1 dB |
| DISTORTION |
1% @ 40KHz (mono) |
| STEREO SEPARATION FM ONLY |
> 40 dB |
| SIGNAL TO NOISE RATIO FM ONLY |
@ 90MHz, 60dbu & 75KHz mod = 56db |
| OUTPUT VOLTAGE |
1.2 V RMS for 50 kHz deviation |
| AERIAL CONNECTIONS |
300 Ohm and 75 Ohm co-ax |
| POWER CONSUMPTION |
15Watts |
| POWER SUPPLY VOLTAGE |
Switchable 220/115 V AC 50 Hz |
| WEIGHT |
5Kgs (11lbs) |
| FINISH COLOURS |
Silver/Balck |
| SIZE |
430 x 80 x 330mm W/D/H
|
|
TECHNICAL SPECIFICATION
| WAVE BANDS |
Worldwide FM 87 – 108 MHz
Japan FM 76 – 90 MHz
Europe MW/AM 522 – 1611 kHz
USA AM 530 – 1710 kHz |
| FREQUENCY INCREMENTS |
50 kHz FM, 9 or 10 kHz AM |
| USABLE FM SENSITIVITY |
9dbu @ 30bd S/N 90MHz |
| SELECTIVITY (IHF) |
30dB |
| NUMBER OF PRE-SETS |
80 |
| FREQUENCY RESPONSEFM ONLY |
20 Hz to 16 kHz -1 dB |
| DISTORTION |
1% @ 40KHz (mono) |
| STEREO SEPARATION FM ONLY |
> 40 dB |
| SIGNAL TO NOISE RATIO FM ONLY |
@ 90MHz, 60dbu & 75KHz mod = 56db |
| OUTPUT VOLTAGE |
1.2 V RMS for 50 kHz deviation |
| AERIAL CONNECTIONS |
300 Ohm and 75 Ohm co-ax |
| POWER CONSUMPTION |
15Watts |
| POWER SUPPLY VOLTAGE |
Switchable 220/115 V AC 50 Hz |
| WEIGHT |
5Kgs (11lbs) |
| FINISH COLOURS |
Silver/Balck |
| SIZE |
430 x 80 x 330mm W/D/H
|
The Destiny 2 Tuner uses a rotary tuning knob to control the tuning and pre-set station selection in an analogue way. To simplify its functionality, Creek’s engineers have minimised the number of local functions. These include Standby on-off, Tuning, Pre-sets, AM/FM selection, Auto Scan tuning and Memory store. All these plus Mono, Stereo, Display Brightness and direct pre-set station number entry are also available via a Creek SRC3 system remote control that also serves the Destiny 2 amplifier and CD player. The Destiny 2 Tuner also has the ability to display the name and frequency of the received station using RDS (Radio Data System) on its green vacuum fluorescent display.
High sensitivity and selectivity are achieved by using four tuned circuit FM radio front-end with J-FET amplifier and mixer and is shielded from interference by a tin-plated metal can. A high-grade IF and PLL stereo decoder circuit process the signal and the audio output is filtered and buffered by a high-grade op-amp based circuit to enable it to drive a long cable without loses. Each channel is powered separately.
